关于几种字符串查找算法的对比分析


昨日在新生命团队钉钉群中,看到大石头老师分享了他们实现的 IndexOf 算法,据说可以做到 O(1),第一反应是几乎不可能,了解之后得知是使用了 Boyer Moore 字符串搜索算法,据说这种算法常用于 IDE 工具的查找,比 KMP 更快,所以有了对各种常用字符串查找算法做一下 Benchmark 的想法。

横向对比的各个字符串查找算法

string.IndexOf

此方法为 FLC 中实现的 string 类型的方法,以下源码均已开源在 GitHub

1
2
3
4
5
6
7
8
9
// Determines the position within this string of the first occurence of the specified
// string, according to the specified search criteria. The search begins at
// the first character of this string, it is case-sensitive and ordinal (code-point)
// comparison is used.
//
[Pure]
public int IndexOf(String value) {
return IndexOf(value, StringComparison.CurrentCulture);
}

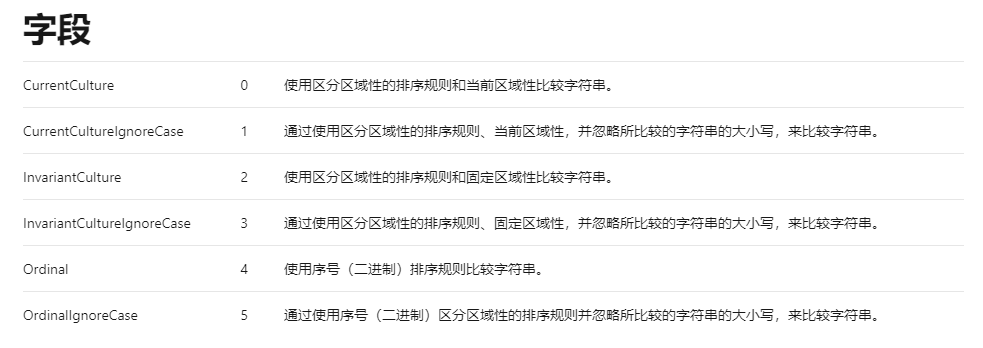

可以看到,默认使用了 StringComprison.CurrentCulture,关于其具体的定义,可以参照官方文档

通常情况我们使用 CurrentCulture 或是 Ordinal 都能很好的满足需求。


继续向下看(源码为节选,省略了无关内容)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
[Pure]
public int IndexOf(String value, StringComparison comparisonType) {
return IndexOf(value, 0, this.Length, comparisonType);
}
[Pure]
[System.Security.SecuritySafeCritical]
public int IndexOf(String value, int startIndex, int count, StringComparison comparisonType) {
// Validate inputs
if (value == null)
throw new ArgumentNullException("value");

if (startIndex < 0 || startIndex > this.Length)
throw new ArgumentOutOfRangeException("startIndex", Environment.GetResourceString("ArgumentOutOfRange_Index"));

if (count < 0 || startIndex > this.Length - count)
throw new ArgumentOutOfRangeException("count", Environment.GetResourceString("ArgumentOutOfRange_Count"));
Contract.EndContractBlock();

switch (comparisonType) {
case StringComparison.CurrentCulture:
return CultureInfo.CurrentCulture.CompareInfo.IndexOf(this, value, startIndex, count, CompareOptions.None);

case StringComparison.CurrentCultureIgnoreCase:
return CultureInfo.CurrentCulture.CompareInfo.IndexOf(this, value, startIndex, count, CompareOptions.IgnoreCase);

case StringComparison.InvariantCulture:
return CultureInfo.InvariantCulture.CompareInfo.IndexOf(this, value, startIndex, count, CompareOptions.None);

case StringComparison.InvariantCultureIgnoreCase:
return CultureInfo.InvariantCulture.CompareInfo.IndexOf(this, value, startIndex, count, CompareOptions.IgnoreCase);

case StringComparison.Ordinal:
return CultureInfo.InvariantCulture.CompareInfo.IndexOf(this, value, startIndex, count, CompareOptions.Ordinal);

case StringComparison.OrdinalIgnoreCase:
if (value.IsAscii() && this.IsAscii())
return CultureInfo.InvariantCulture.CompareInfo.IndexOf(this, value, startIndex, count, CompareOptions.IgnoreCase);
else
return TextInfo.IndexOfStringOrdinalIgnoreCase(this, value, startIndex, count);

default:
throw new ArgumentException(Environment.GetResourceString("NotSupported_StringComparison"), "comparisonType");
}
}

下面继续跟着源码来到 CompareInfo

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
public unsafe virtual int IndexOf(String source, char value, CompareOptions options)
{
if (source==null)
throw new ArgumentNullException("source");
Contract.EndContractBlock();

return IndexOf(source, value, 0, source.Length, options);
}

[System.Security.SecuritySafeCritical] // auto-generated
[ResourceExposure(ResourceScope.None)]
[ResourceConsumption(ResourceScope.Process, ResourceScope.Process)]
public unsafe virtual int IndexOf(String source, char value, int startIndex, int count, CompareOptions options)
{
// Validate inputs
if (source == null)
throw new ArgumentNullException("source");

if (startIndex < 0 || startIndex > source.Length)
throw new ArgumentOutOfRangeException("startIndex", Environment.GetResourceString("ArgumentOutOfRange_Index"));

if (count < 0 || startIndex > source.Length - count)
throw new ArgumentOutOfRangeException("count", Environment.GetResourceString("ArgumentOutOfRange_Count"));
Contract.EndContractBlock();

if (options == CompareOptions.OrdinalIgnoreCase)
{
//
return source.IndexOf(value.ToString(), startIndex, count, StringComparison.OrdinalIgnoreCase);
}

// Validate CompareOptions
// Ordinal can't be selected with other flags
if ((options & ValidIndexMaskOffFlags) != 0 && (options != CompareOptions.Ordinal))
throw new ArgumentException(Environment.GetResourceString("Argument_InvalidFlag"), "options");

// to let the sorting DLL do the call optimization in case of Ascii strings, we check if the strings are in Ascii and then send the flag RESERVED_FIND_ASCII_STRING to
// the sorting DLL API SortFindString so sorting DLL don't have to check if the string is Ascii with every call to SortFindString.
return InternalFindNLSStringEx(
m_dataHandle, m_handleOrigin, m_sortName,
GetNativeCompareFlags(options) | Win32Native.FIND_FROMSTART | ((source.IsAscii() && (value <= '\x007f')) ? RESERVED_FIND_ASCII_STRING : 0),
source, count, startIndex, new String(value, 1), 1);
}

// InternalFindNLSStringEx parameters is not exactly matching kernel32::FindNLSStringEx parameters.
// Call through to NewApis::FindNLSStringEx so we can get the right behavior
[System.Security.SecurityCritical] // auto-generated
[ResourceExposure(ResourceScope.None)]
[DllImport(JitHelpers.QCall, CharSet = CharSet.Unicode)]
[SuppressUnmanagedCodeSecurity]
private static extern int InternalFindNLSStringEx(IntPtr handle, IntPtr handleOrigin, String localeName, int flags, String source, int sourceCount, int startIndex, string target, int targetCount);

可以看到,最终是调用了 InternalFindNLSStringEx

不同的选项被转换成了不同的 flag

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
[Pure]
internal static int GetNativeCompareFlags(CompareOptions options)
{
// some NLS VM functions can handle COMPARE_OPTIONS_ORDINAL
// in which case options should be simply cast to int instead of using this function
// Does not look like the best approach to me but for now I am going to leave it as it is
//
Contract.Assert(options != CompareOptions.OrdinalIgnoreCase, "[CompareInfo.GetNativeCompareFlags]CompareOptions.OrdinalIgnoreCase should be handled separately");

// Use "linguistic casing" by default (load the culture's casing exception tables)
int nativeCompareFlags = NORM_LINGUISTIC_CASING;

if ((options & CompareOptions.IgnoreCase) != 0) { nativeCompareFlags |= NORM_IGNORECASE; }
if ((options & CompareOptions.IgnoreKanaType) != 0) { nativeCompareFlags |= NORM_IGNOREKANATYPE; }
if ((options & CompareOptions.IgnoreNonSpace) != 0) { nativeCompareFlags |= NORM_IGNORENONSPACE; }
if ((options & CompareOptions.IgnoreSymbols) != 0) { nativeCompareFlags |= NORM_IGNORESYMBOLS; }
if ((options & CompareOptions.IgnoreWidth) != 0) { nativeCompareFlags |= NORM_IGNOREWIDTH; }
if ((options & CompareOptions.StringSort) != 0) { nativeCompareFlags |= SORT_STRINGSORT; }

// Suffix & Prefix shouldn't use this, make sure to turn off the NORM_LINGUISTIC_CASING flag
if (options == CompareOptions.Ordinal) { nativeCompareFlags = COMPARE_OPTIONS_ORDINAL; }

Contract.Assert(((options & ~(CompareOptions.IgnoreCase |
CompareOptions.IgnoreKanaType |
CompareOptions.IgnoreNonSpace |
CompareOptions.IgnoreSymbols |
CompareOptions.IgnoreWidth |
CompareOptions.StringSort)) == 0) ||
(options == CompareOptions.Ordinal), "[CompareInfo.GetNativeCompareFlags]Expected all flags to be handled");

Contract.Assert((nativeCompareFlags & RESERVED_FIND_ASCII_STRING) == 0, "[CompareInfo.GetNativeCompareFlags] RESERVED_FIND_ASCII_STRING shouldn't be set here");

return nativeCompareFlags;
}

可以看到继续前进涉及到了 CLR 层的 comnlsinfo

1
2
3
4
5
6
7
8
9
10
11
12
//
// Search for the character in the string.
//
Buffer1 = pString1->GetBuffer();
Buffer2 = pString2->GetBuffer();

if (dwFlags == COMPARE_OPTIONS_ORDINAL)
{
iRetVal = FastIndexOfString(Buffer1, StartIndex, EndIndex, Buffer2, StringLength2);
goto lExit;
}

其中 COMPARE_OPTIONS_ORDINAL 涉及到的是 FastIndexOfString

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

INT32 COMNlsInfo::FastIndexOfString(__in WCHAR *source, INT32 startIndex, INT32 endIndex, __in_ecount(patternLength) WCHAR *pattern, INT32 patternLength)
{
CONTRACTL {
NOTHROW;
GC_NOTRIGGER;
MODE_COOPERATIVE;
SO_TOLERANT;
PRECONDITION(CheckPointer(source));
PRECONDITION(CheckPointer(pattern));
PRECONDITION(startIndex >= 0);
PRECONDITION(endIndex >= 0);
PRECONDITION(patternLength>= 0);
} CONTRACTL_END

int endPattern = endIndex - patternLength + 1;

if (endPattern<0) {
return -1;
}

if (patternLength <= 0) {
return startIndex;
}

WCHAR patternChar0 = pattern[0];
for (int ctrSrc = startIndex; ctrSrc<=endPattern; ctrSrc++) {
if (source[ctrSrc] != patternChar0)
continue;
int ctrPat;
for (ctrPat = 1; (ctrPat < patternLength) && (source[ctrSrc + ctrPat] == pattern[ctrPat]); ctrPat++) {
;
}
if (ctrPat == patternLength) {
return (ctrSrc);
}
}

return (-1);
}

其余的则是 IndexOfString

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
FCIMPL7(INT32, COMNlsInfo::IndexOfString,
INT_PTR pNativeCompareInfo,
INT32 LCID,
StringObject* pString1UNSAFE, // String to search in
StringObject* pString2UNSAFE, // String we're looking for
INT32 StartIndex, // Index to start at in search string
INT32 Count, // # of chars to search
INT32 dwFlags)
{
CONTRACTL
{
THROWS;
DISABLED(GC_TRIGGERS);
MODE_ANY;
SO_TOLERANT;
PRECONDITION(CheckPointer((LPVOID)pNativeCompareInfo));
PRECONDITION(CheckPointer(pString1UNSAFE));
PRECONDITION(CheckPointer(pString2UNSAFE));
} CONTRACTL_END;

INT32 iRetVal = -1;
STRINGREF pString1 = (STRINGREF) pString1UNSAFE;
STRINGREF pString2 = (STRINGREF) pString2UNSAFE;

HELPER_METHOD_FRAME_BEGIN_RET_2(pString1, pString2);

WCHAR *Buffer1 = NULL;
WCHAR *Buffer2 = NULL;

//
// Get the arguments.
//
int StringLength1;
int StringLength2;
StringLength1 = pString1->GetStringLength();
StringLength2 = pString2->GetStringLength();

//
// Get the arguments.
//
_ASSERTE(StartIndex >= 0 && StartIndex <= StringLength1);

int EndIndex = StartIndex - 1 + Count;

_ASSERTE(Count >= 0 && EndIndex < StringLength1);

//
// Check the ranges.
//
if (StringLength1 == 0)
{
if (StringLength2 == 0)
iRetVal = 0;
// else iRetVal = -1 (not found)
goto lExit;
}

//
// See if we have an empty string 2.
//
if (StringLength2 == 0)
{
iRetVal = StartIndex;
goto lExit;
}

//
// Search for the character in the string.
//
Buffer1 = pString1->GetBuffer();
Buffer2 = pString2->GetBuffer();

if (dwFlags == COMPARE_OPTIONS_ORDINAL)
{
iRetVal = FastIndexOfString(Buffer1, StartIndex, EndIndex, Buffer2, StringLength2);
goto lExit;
}

//For dwFlags, 0 is the default, 1 is ignore case, we can handle both.
if (dwFlags<=1 && IS_FAST_COMPARE_LOCALE(LCID))
{
//If we've never before looked at whether this string has high chars, do so now.
if (IS_STRING_STATE_UNDETERMINED(pString1->GetHighCharState()))
{
COMString::InternalCheckHighChars(pString1);
}

//If we've never before looked at whether this string has high chars, do so now.
if (IS_STRING_STATE_UNDETERMINED(pString2->GetHighCharState()))
{
COMString::InternalCheckHighChars(pString2);
}

//If neither string has high chars, we can use a much faster comparison algorithm.
if (IS_FAST_INDEX(pString1->GetHighCharState()) && IS_FAST_INDEX(pString2->GetHighCharState()))
{
if (dwFlags==0)
iRetVal = FastIndexOfString(Buffer1, StartIndex, EndIndex, Buffer2, StringLength2);
else
iRetVal = FastIndexOfStringInsensitive(Buffer1, StartIndex, EndIndex, Buffer2, StringLength2);
goto lExit;
}
}

iRetVal = ((NativeCompareInfo*)(pNativeCompareInfo))->IndexOfString(
Buffer1, Buffer2, StartIndex, EndIndex, StringLength2, dwFlags, FALSE);

// We checked flags in managed code, so this shouldn't happen.
_ASSERTE(iRetVal != INDEXOF_INVALID_FLAGS);
// if (iRetVal == INDEXOF_INVALID_FLAGS) {
// COMPlusThrowArgumentException(L"flags", L"Argument_InvalidFlag");
// }

lExit: ;
HELPER_METHOD_FRAME_END();
return iRetVal;

}
FCIMPLEND

FCIMPL5(INT32, COMNlsInfo::IndexOfStringOrdinalIgnoreCase,
INT_PTR ptr,
StringObject* pString1UNSAFE, // String to search in
StringObject* pString2UNSAFE, // String we're looking for
INT32 StartIndex, // Index to start at in search string
INT32 Count) // # of chars to search
{
CONTRACTL
{
THROWS;
DISABLED(GC_TRIGGERS);
MODE_ANY;
SO_TOLERANT;
PRECONDITION(ptr != NULL);
PRECONDITION(CheckPointer(pString1UNSAFE));
PRECONDITION(CheckPointer(pString2UNSAFE));
} CONTRACTL_END;

INT32 iRetVal = -1;
STRINGREF pString1 = (STRINGREF) pString1UNSAFE;
STRINGREF pString2 = (STRINGREF) pString2UNSAFE;

HELPER_METHOD_FRAME_BEGIN_RET_2(pString1, pString2);

WCHAR *Buffer1 = NULL;
WCHAR *Buffer2 = NULL;

//
// Get the arguments.
//
int StringLength1;
int StringLength2;
StringLength1 = pString1->GetStringLength();
StringLength2 = pString2->GetStringLength();

//
// Get the arguments.
//
_ASSERTE(StartIndex >= 0 && StartIndex <= StringLength1);

int EndIndex = StartIndex - 1 + Count;

_ASSERTE(Count >= 0 && EndIndex < StringLength1);

//
// Check the ranges.
//
if (StringLength1 == 0)
{
if (StringLength2 == 0)
iRetVal = 0;
// else iRetVal = -1 (not found)
goto lExit;
}

//
// See if we have an empty string 2.
//
if (StringLength2 == 0)
{
iRetVal = StartIndex;
goto lExit;
}

//
// Search for the character in the string.
//
Buffer1 = pString1->GetBuffer();
Buffer2 = pString2->GetBuffer();

//If we've never before looked at whether this string has high chars, do so now.
if (IS_STRING_STATE_UNDETERMINED(pString1->GetHighCharState()))
{
COMString::InternalCheckHighChars(pString1);
}

//If we've never before looked at whether this string has high chars, do so now.
if (IS_STRING_STATE_UNDETERMINED(pString2->GetHighCharState()))
{
COMString::InternalCheckHighChars(pString2);
}

//If neither string has high chars, we can use a much faster comparison algorithm.
if (IS_FAST_INDEX(pString1->GetHighCharState()) && IS_FAST_INDEX(pString2->GetHighCharState())) {
iRetVal = FastIndexOfStringInsensitive(Buffer1, StartIndex, EndIndex, Buffer2, StringLength2);
}
else {
NativeTextInfo* pNativeTextInfo = (NativeTextInfo*)ptr;
iRetVal = pNativeTextInfo->IndexOfStringOrdinalIgnoreCase(Buffer1, StartIndex, EndIndex, Buffer2, StringLength2);
}

lExit: ;
HELPER_METHOD_FRAME_END();
return iRetVal;

}

Span<Char>.IndexOf

System.Span<T> 是在 .NET 中发挥关键作用的新值类型。使用它,可以表示任意内存的相邻区域,无论相应内存是与托管对象相关联,还是通过互操作由本机代码提供,亦或是位于堆栈上。除了具有上述用途外,它仍能确保安全访问和高性能特性,就像数组一样。
官方在 System.Memory.dll 中提供了 MemoryExtensions.IndexOf 方法,同样可以用于字符串的查找。

简单看一下源码
MemoryExtensions.Globalization.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
/// <summary>
/// Reports the zero-based index of the first occurrence of the specified <paramref name="value"/> in the current <paramref name="span"/>.
/// <param name="span">The source span.</param>
/// <param name="value">The value to seek within the source span.</param>
/// <param name="comparisonType">One of the enumeration values that determines how the <paramref name="span"/> and <paramref name="value"/> are compared.</param>
/// </summary>
public static int IndexOf(this ReadOnlySpan<char> span, ReadOnlySpan<char> value, StringComparison comparisonType)
{
string.CheckStringComparison(comparisonType);

if (comparisonType == StringComparison.Ordinal)
{
return SpanHelpers.IndexOf(
ref MemoryMarshal.GetReference(span),
span.Length,
ref MemoryMarshal.GetReference(value),
value.Length);
}

switch (comparisonType)
{
case StringComparison.CurrentCulture:
case StringComparison.CurrentCultureIgnoreCase:
return CultureInfo.CurrentCulture.CompareInfo.IndexOf(span, value, string.GetCaseCompareOfComparisonCulture(comparisonType));

case StringComparison.InvariantCulture:
case StringComparison.InvariantCultureIgnoreCase:
return CompareInfo.Invariant.IndexOf(span, value, string.GetCaseCompareOfComparisonCulture(comparisonType));

default:
Debug.Assert(comparisonType == StringComparison.OrdinalIgnoreCase);
return CompareInfo.IndexOfOrdinalIgnoreCase(span, value, fromBeginning: true);
}
}

可以看到,只有 StringComparison.Ordinal 下,调用了 SpanHelpers.IndexOf 方法,其余参数下依旧采用了和 string.IndexOf 一致的 CompareInfo 处理。
SpanHelpers.IndexOf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
public static int IndexOf(ref byte searchSpace, int searchSpaceLength, ref byte value, int valueLength)
{
Debug.Assert(searchSpaceLength >= 0);
Debug.Assert(valueLength >= 0);

if (valueLength == 0)
return 0; // A zero-length sequence is always treated as "found" at the start of the search space.

byte valueHead = value;
ref byte valueTail = ref Unsafe.Add(ref value, 1);
int valueTailLength = valueLength - 1;
int remainingSearchSpaceLength = searchSpaceLength - valueTailLength;

int offset = 0;
while (remainingSearchSpaceLength > 0)
{
// Do a quick search for the first element of "value".
int relativeIndex = IndexOf(ref Unsafe.Add(ref searchSpace, offset), valueHead, remainingSearchSpaceLength);
if (relativeIndex == -1)
break;

remainingSearchSpaceLength -= relativeIndex;
offset += relativeIndex;

if (remainingSearchSpaceLength <= 0)
break; // The unsearched portion is now shorter than the sequence we're looking for. So it can't be there.

// Found the first element of "value". See if the tail matches.
if (SequenceEqual(ref Unsafe.Add(ref searchSpace, offset + 1), ref valueTail, (nuint)valueTailLength)) // The (nunit)-cast is necessary to pick the correct overload
return offset; // The tail matched. Return a successful find.

remainingSearchSpaceLength--;
offset++;
}
return -1;
}

Boyer Moore

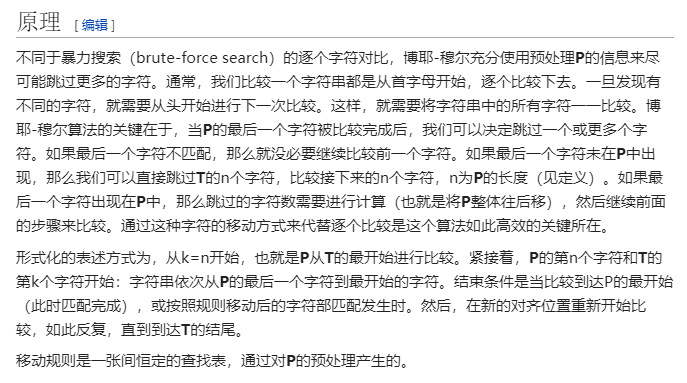

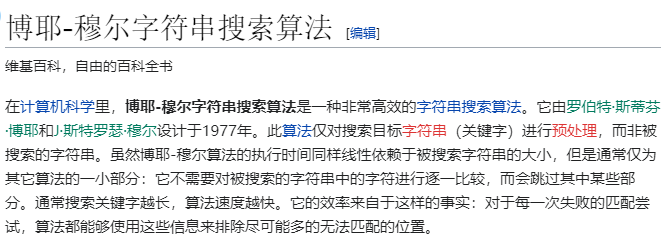

截图来自维基百科词条:博耶-穆尔字符串搜索算法

这里直接上 C# 版本源码实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public static int BoyerMooreIndexOf(this string source, string pattern, int offset = 0, int count = -1) => BoyerMooreIndexOf(Encoding.UTF8.GetBytes(source), Encoding.UTF8.GetBytes(pattern), offset, count);

public static int BoyerMooreIndexOf(this byte[] source, byte[] pattern, int offset = 0, int count = -1)
{
if (source == null) throw new ArgumentNullException(nameof(source));
if (pattern == null) throw new ArgumentNullException(nameof(pattern));

var total = source.Length;
var length = pattern.Length;

if (count > 0 && total > offset + count) total = offset + count;
if (total == 0 || length == 0 || length > total) return -1;

// 初始化坏字符,即不匹配字符
var bads = new int[256];
for (var i = 0; i < 256; i++)
bads[i] = length;


var last = length - 1;
for (var i = 0; i < last; i++)
bads[pattern[i]] = last - i;


var index = offset;
while (index <= total - length)
{
// 尾部开始比较
for (var i = last; source[index + i] == pattern[i]; i--)
if (i == 0) return index;


// 坏字符规则:后移位数 = 坏字符的位置 - 搜索词中的上一次出现位置
index += bads[source[index + last]];
}

return -1;
}

KMP

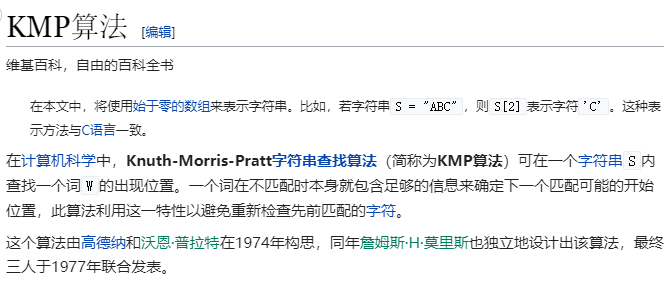

截图来自维基百科词条:KMP算法

同样直接上源码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
 public static int KMPSearch(this string text, string pattern)
{
var n = text.Length;
var m = pattern.Length;

if (n < m) return -1;
if (n == m && text == pattern) return 0;
if (m == 0) return 0;

var lpsArray = new int[m];

LongestPrefixSuffix(pattern, ref lpsArray);

int i = 0, j = 0;
while (i < n)
{
if (text[i] == pattern[j])
{
i++;
j++;
}
if (j == m)
return i - j;

if (i >= n || text[i] == pattern[j]) continue;
if (j != 0)
j = lpsArray[j - 1];
else
i++;
}

return -1;
}

public static void LongestPrefixSuffix(string pattern, ref int[] lpsArray)
{
var m = pattern.Length;
var len = 0;
lpsArray[0] = 0;
var i = 1;

while (i < m)
{
if (pattern[i] == pattern[len])
lpsArray[i++] = ++len;
else if (len == 0)
lpsArray[i++] = 0;
else
len = lpsArray[len - 1];
}
}

算法性能横向测试

本次横向对比了 IndexOf IndexOfOrdinal SpanIndexOf SpanIndexOfOrdinal BoyerMooreIndexOf KMPIndexOf,在查找样本长度 100, 10000, 1000000, 100000000 四种数据规模下,被查找字符串分别处于样本 开头、中间、结尾、随机位置 四种情况下的性能。

测试完整源码

Program.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
using BenchmarkDotNet.Attributes;
using BenchmarkDotNet.Running;
using System;
using System.Collections.Generic;
using System.Text;

namespace BenchmarkSample
{
public static class Program
{
[RPlotExporter]
public class IndexOfTest
{
private string _haystack;
private string _needle = "needle";

[Params(100, 10000, 1000000, 100000000)]
public int HaystackSize { get; set; }

[Params(SubstringLocationEnum.Start, SubstringLocationEnum.Middle, SubstringLocationEnum.End,
SubstringLocationEnum.Random)]
public SubstringLocationEnum Location { get; set; }

public IndexOfTest()
{
_haystack = GetRandomString(HaystackSize, _needle, Location); ;
}

[Benchmark]
public int IndexOf() => _haystack.IndexOf(_needle);
[Benchmark]
public int IndexOfOrdinal() => _haystack.IndexOf(_needle, StringComparison.Ordinal);
[Benchmark]
public int SpanIndexOf() => _haystack.AsSpan().IndexOf(_needle);
[Benchmark]
public int SpanIndexOfOrdinal() => _haystack.AsSpan().IndexOf(_needle, StringComparison.Ordinal);
[Benchmark]
public int BoyerMooreIndexOf() => _haystack.BoyerMooreIndexOf(_needle);
[Benchmark]
public int KMPIndexOf() => _haystack.KMPSearch(_needle);

}

public enum SubstringLocationEnum
{
Start = 0, Middle, End, Random
}

/// <summary>
/// 生成随机字符串并加入自定义串
/// </summary>
/// <param name="length">目标字符串的长度</param>
/// <param name="custom">要插入的自定义串</param>
/// <param name="location">插入的位置 0:开头 1:中间 2:尾部 3:随机</param>
/// <returns></returns>
public static string GetRandomString(int length, string custom, SubstringLocationEnum location = SubstringLocationEnum.Middle)
=> GetRandomString(length, true, true, true, true, null, custom, (int)location);

/// <summary>
/// 生成随机字符串
/// </summary>
/// <param name="length">目标字符串的长度</param>
/// <param name="useNum">是否包含数字,1=包含,默认为包含</param>
/// <param name="useLow">是否包含小写字母,1=包含,默认为包含</param>
/// <param name="useUpp">是否包含大写字母,1=包含,默认为包含</param>
/// <param name="useSpe">是否包含特殊字符,1=包含,默认为不包含</param>
/// <param name="customChars">要包含的自定义字符,直接输入要包含的字符列表</param>
/// <param name="custom">要插入的自定义串</param>
/// <param name="location">插入的位置 0:开头 1:中间 2:尾部 3:随机</param>
/// <returns>指定长度的随机字符串</returns>
public static string GetRandomString(int length, bool useNum = true, bool useLow = true, bool useUpp = true, bool useSpe = true, string customChars = null, string custom = null, int location = 0)
{
var b = new byte[4];
new System.Security.Cryptography.RNGCryptoServiceProvider().GetBytes(b);
Random r = new(BitConverter.ToInt32(b, 0));
var charList = new List<char>();
var sb = new StringBuilder();
custom ??= string.Empty;
charList.AddRange(custom);
if (useNum) charList.AddRange("0123456789");
if (useLow) charList.AddRange("abcdefghijklmnopqrstuvwxyz");
if (useUpp) charList.AddRange("ABCDEFGHIJKLMNOPQRSTUVWXYZ");
if (useSpe) charList.AddRange("!\"#$%&'()*+,-./:;<=>?@[\\]^_`{|}~");
var charArray = charList.ToArray();

for (var i = 0; i < length; i++)
{
sb.Append(charArray[r.Next(0, charArray.Length - 1)]);
}

var insertIndex = location switch
{
0 => 0,
1 => length / 2,
2 => length - 1,
3 => r.Next(0, length),
_ => -1
};

return sb.Insert(insertIndex, custom).ToString();
}

public static int BoyerMooreIndexOf(this string source, string pattern, int offset = 0, int count = -1) => BoyerMooreIndexOf(Encoding.UTF8.GetBytes(source), Encoding.UTF8.GetBytes(pattern), offset, count);
/// <summary>Boyer Moore 字符串搜索算法,比KMP更快,常用于IDE工具的查找</summary>
/// <param name="source"></param>
/// <param name="pattern"></param>
/// <param name="offset"></param>
/// <param name="count"></param>
/// <returns></returns>
public static int BoyerMooreIndexOf(this byte[] source, byte[] pattern, int offset = 0, int count = -1)
{
if (source == null) throw new ArgumentNullException(nameof(source));
if (pattern == null) throw new ArgumentNullException(nameof(pattern));

var total = source.Length;
var length = pattern.Length;

if (count > 0 && total > offset + count) total = offset + count;
if (total == 0 || length == 0 || length > total) return -1;

// 初始化坏字符,即不匹配字符
var bads = new int[256];
for (var i = 0; i < 256; i++)
bads[i] = length;


var last = length - 1;
for (var i = 0; i < last; i++)
bads[pattern[i]] = last - i;


var index = offset;
while (index <= total - length)
{
// 尾部开始比较
for (var i = last; source[index + i] == pattern[i]; i--)
if (i == 0) return index;


// 坏字符规则:后移位数 = 坏字符的位置 - 搜索词中的上一次出现位置
index += bads[source[index + last]];
}

return -1;
}
public static int KMPSearch(this string text, string pattern)
{
var n = text.Length;
var m = pattern.Length;

if (n < m) return -1;
if (n == m && text == pattern) return 0;
if (m == 0) return 0;

var lpsArray = new int[m];

LongestPrefixSuffix(pattern, ref lpsArray);

int i = 0, j = 0;
while (i < n)
{
if (text[i] == pattern[j])
{
i++;
j++;
}
if (j == m)
return i - j;

if (i >= n || text[i] == pattern[j]) continue;
if (j != 0)
j = lpsArray[j - 1];
else
i++;
}

return -1;
}

public static void LongestPrefixSuffix(string pattern, ref int[] lpsArray)
{
var m = pattern.Length;
var len = 0;
lpsArray[0] = 0;
var i = 1;

while (i < m)
{
if (pattern[i] == pattern[len])
lpsArray[i++] = ++len;
else if (len == 0)
lpsArray[i++] = 0;
else
len = lpsArray[len - 1];
}
}

public static void Main(string[] args)
{
var summary = BenchmarkRunner.Run<IndexOfTest>();
Console.ReadLine();
}
}
}

测试结果

因为测试结果比较多,生成的图表一大堆,就不放了,直接放时间表。

1
2
3
4
5
6
7
8

BenchmarkDotNet=v0.13.1, OS=Windows 10.0.22000
AMD Ryzen 7 3700X, 1 CPU, 16 logical and 8 physical cores
.NET SDK=6.0.100-preview.4.21255.9
[Host] : .NET 6.0.0 (6.0.21.25307), X64 RyuJIT
DefaultJob : .NET 6.0.0 (6.0.21.25307), X64 RyuJIT


Method HaystackSize Location Mean Error StdDev Median
IndexOf 100 Start 1,907.369 ns 10.5384 ns 9.8576 ns 1,909.585 ns
IndexOfOrdinal 100 Start 10.262 ns 0.0898 ns 0.0750 ns 10.266 ns
SpanIndexOf 100 Start 6.445 ns 0.1105 ns 0.1033 ns 6.402 ns
SpanIndexOfOrdinal 100 Start 11.435 ns 0.1470 ns 0.1148 ns 11.426 ns
BoyerMooreIndexOf 100 Start 152.684 ns 0.8215 ns 0.6860 ns 152.648 ns
KMPIndexOf 100 Start 4.804 ns 0.0463 ns 0.0387 ns 4.797 ns
IndexOf 100 Middle 1,928.897 ns 23.5317 ns 20.8602 ns 1,928.090 ns
IndexOfOrdinal 100 Middle 10.455 ns 0.0554 ns 0.0518 ns 10.458 ns
SpanIndexOf 100 Middle 6.515 ns 0.0611 ns 0.0571 ns 6.522 ns
SpanIndexOfOrdinal 100 Middle 11.298 ns 0.0352 ns 0.0329 ns 11.296 ns
BoyerMooreIndexOf 100 Middle 152.590 ns 3.0697 ns 7.9786 ns 150.171 ns
KMPIndexOf 100 Middle 4.900 ns 0.0791 ns 0.0661 ns 4.907 ns
IndexOf 100 End 1,911.385 ns 12.0498 ns 11.2714 ns 1,908.234 ns
IndexOfOrdinal 100 End 10.713 ns 0.1678 ns 0.1401 ns 10.653 ns
SpanIndexOf 100 End 6.891 ns 0.1039 ns 0.0972 ns 6.849 ns
SpanIndexOfOrdinal 100 End 11.380 ns 0.0908 ns 0.0805 ns 11.378 ns
BoyerMooreIndexOf 100 End 149.144 ns 2.7001 ns 2.3936 ns 148.958 ns
KMPIndexOf 100 End 4.750 ns 0.0201 ns 0.0188 ns 4.753 ns
IndexOf 100 Random 1,926.007 ns 37.7531 ns 35.3143 ns 1,925.254 ns
IndexOfOrdinal 100 Random 10.446 ns 0.1609 ns 0.1427 ns 10.404 ns
SpanIndexOf 100 Random 6.384 ns 0.0295 ns 0.0261 ns 6.383 ns
SpanIndexOfOrdinal 100 Random 11.130 ns 0.0977 ns 0.0816 ns 11.109 ns
BoyerMooreIndexOf 100 Random 145.757 ns 1.7552 ns 1.4656 ns 145.716 ns
KMPIndexOf 100 Random 4.769 ns 0.0271 ns 0.0253 ns 4.770 ns
IndexOf 10000 Start 1,889.613 ns 30.0781 ns 28.1351 ns 1,876.613 ns
IndexOfOrdinal 10000 Start 10.447 ns 0.1852 ns 0.1641 ns 10.433 ns
SpanIndexOf 10000 Start 6.631 ns 0.0485 ns 0.0453 ns 6.612 ns
SpanIndexOfOrdinal 10000 Start 11.409 ns 0.0353 ns 0.0331 ns 11.413 ns
BoyerMooreIndexOf 10000 Start 149.268 ns 2.6223 ns 6.3331 ns 146.790 ns
KMPIndexOf 10000 Start 4.882 ns 0.0362 ns 0.0282 ns 4.874 ns
IndexOf 10000 Middle 1,925.414 ns 14.1439 ns 13.2303 ns 1,924.021 ns
IndexOfOrdinal 10000 Middle 10.617 ns 0.0675 ns 0.0598 ns 10.599 ns
SpanIndexOf 10000 Middle 6.610 ns 0.0871 ns 0.0772 ns 6.610 ns
SpanIndexOfOrdinal 10000 Middle 11.441 ns 0.0652 ns 0.0610 ns 11.437 ns
BoyerMooreIndexOf 10000 Middle 161.190 ns 3.1946 ns 3.2806 ns 161.188 ns
KMPIndexOf 10000 Middle 4.930 ns 0.0398 ns 0.0372 ns 4.934 ns
IndexOf 10000 End 1,924.827 ns 13.6193 ns 12.7395 ns 1,922.824 ns
IndexOfOrdinal 10000 End 10.900 ns 0.1292 ns 0.1209 ns 10.893 ns
SpanIndexOf 10000 End 6.816 ns 0.0734 ns 0.0651 ns 6.825 ns
SpanIndexOfOrdinal 10000 End 11.402 ns 0.0474 ns 0.0396 ns 11.387 ns
BoyerMooreIndexOf 10000 End 163.459 ns 3.1810 ns 3.6632 ns 162.601 ns
KMPIndexOf 10000 End 5.143 ns 0.0412 ns 0.0385 ns 5.145 ns
IndexOf 10000 Random 2,000.571 ns 39.6725 ns 38.9637 ns 2,004.035 ns
IndexOfOrdinal 10000 Random 10.909 ns 0.2449 ns 0.5723 ns 10.663 ns
SpanIndexOf 10000 Random 6.673 ns 0.0237 ns 0.0222 ns 6.666 ns
SpanIndexOfOrdinal 10000 Random 10.826 ns 0.1216 ns 0.1078 ns 10.797 ns
BoyerMooreIndexOf 10000 Random 163.361 ns 3.6494 ns 10.3528 ns 161.226 ns
KMPIndexOf 10000 Random 4.882 ns 0.0330 ns 0.0309 ns 4.872 ns
IndexOf 1000000 Start 1,917.655 ns 5.6120 ns 5.2495 ns 1,917.252 ns
IndexOfOrdinal 1000000 Start 10.716 ns 0.1213 ns 0.1135 ns 10.709 ns
SpanIndexOf 1000000 Start 6.572 ns 0.0252 ns 0.0197 ns 6.572 ns
SpanIndexOfOrdinal 1000000 Start 11.066 ns 0.0776 ns 0.0726 ns 11.066 ns
BoyerMooreIndexOf 1000000 Start 155.307 ns 3.1059 ns 3.6974 ns 156.110 ns
KMPIndexOf 1000000 Start 4.843 ns 0.0137 ns 0.0122 ns 4.846 ns
IndexOf 1000000 Middle 1,920.323 ns 18.2098 ns 17.0335 ns 1,922.634 ns
IndexOfOrdinal 1000000 Middle 10.683 ns 0.0894 ns 0.0836 ns 10.660 ns
SpanIndexOf 1000000 Middle 6.569 ns 0.0653 ns 0.0579 ns 6.570 ns
SpanIndexOfOrdinal 1000000 Middle 11.046 ns 0.0928 ns 0.0868 ns 11.040 ns
BoyerMooreIndexOf 1000000 Middle 153.735 ns 3.0260 ns 7.9716 ns 149.605 ns
KMPIndexOf 1000000 Middle 4.948 ns 0.0780 ns 0.0730 ns 4.944 ns
IndexOf 1000000 End 1,922.367 ns 15.6553 ns 13.8780 ns 1,920.379 ns
IndexOfOrdinal 1000000 End 18.310 ns 0.2918 ns 0.2730 ns 18.192 ns
SpanIndexOf 1000000 End 6.586 ns 0.0560 ns 0.0523 ns 6.580 ns
SpanIndexOfOrdinal 1000000 End 10.961 ns 0.0885 ns 0.0785 ns 10.963 ns
BoyerMooreIndexOf 1000000 End 152.627 ns 2.9601 ns 7.1490 ns 151.619 ns
KMPIndexOf 1000000 End 4.875 ns 0.0351 ns 0.0328 ns 4.859 ns
IndexOf 1000000 Random 1,911.500 ns 6.8142 ns 6.3740 ns 1,912.532 ns
IndexOfOrdinal 1000000 Random 10.602 ns 0.0849 ns 0.0752 ns 10.602 ns
SpanIndexOf 1000000 Random 6.673 ns 0.0511 ns 0.0478 ns 6.673 ns
SpanIndexOfOrdinal 1000000 Random 11.070 ns 0.1190 ns 0.1113 ns 11.049 ns
BoyerMooreIndexOf 1000000 Random 149.230 ns 3.0118 ns 5.0320 ns 147.710 ns
KMPIndexOf 1000000 Random 4.858 ns 0.0327 ns 0.0290 ns 4.859 ns
IndexOf 100000000 Start 1,915.633 ns 14.4868 ns 13.5510 ns 1,917.496 ns
IndexOfOrdinal 100000000 Start 10.772 ns 0.1435 ns 0.1342 ns 10.764 ns
SpanIndexOf 100000000 Start 6.827 ns 0.0666 ns 0.0623 ns 6.806 ns
SpanIndexOfOrdinal 100000000 Start 10.977 ns 0.0593 ns 0.0526 ns 10.989 ns
BoyerMooreIndexOf 100000000 Start 146.921 ns 2.9779 ns 2.6398 ns 147.245 ns
KMPIndexOf 100000000 Start 4.833 ns 0.0151 ns 0.0134 ns 4.832 ns
IndexOf 100000000 Middle 1,906.318 ns 5.4295 ns 5.0788 ns 1,905.934 ns
IndexOfOrdinal 100000000 Middle 10.725 ns 0.2305 ns 0.2467 ns 10.689 ns
SpanIndexOf 100000000 Middle 6.862 ns 0.0724 ns 0.0642 ns 6.851 ns
SpanIndexOfOrdinal 100000000 Middle 11.001 ns 0.0903 ns 0.0845 ns 11.019 ns
BoyerMooreIndexOf 100000000 Middle 152.705 ns 2.4382 ns 2.2807 ns 152.401 ns
KMPIndexOf 100000000 Middle 4.850 ns 0.0262 ns 0.0245 ns 4.846 ns
IndexOf 100000000 End 1,923.149 ns 9.6492 ns 9.0258 ns 1,921.531 ns
IndexOfOrdinal 100000000 End 10.718 ns 0.1682 ns 0.1491 ns 10.759 ns
SpanIndexOf 100000000 End 6.807 ns 0.0234 ns 0.0207 ns 6.804 ns
SpanIndexOfOrdinal 100000000 End 11.071 ns 0.1070 ns 0.1001 ns 11.076 ns
BoyerMooreIndexOf 100000000 End 147.044 ns 2.9552 ns 2.7643 ns 147.472 ns
KMPIndexOf 100000000 End 4.966 ns 0.1067 ns 0.0891 ns 4.949 ns
IndexOf 100000000 Random 1,925.095 ns 30.9030 ns 28.9067 ns 1,923.878 ns
IndexOfOrdinal 100000000 Random 10.486 ns 0.0910 ns 0.0806 ns 10.498 ns
SpanIndexOf 100000000 Random 7.009 ns 0.1658 ns 0.1628 ns 7.015 ns
SpanIndexOfOrdinal 100000000 Random 11.080 ns 0.0898 ns 0.0840 ns 11.112 ns
BoyerMooreIndexOf 100000000 Random 155.551 ns 3.1132 ns 4.2614 ns 155.335 ns
KMPIndexOf 100000000 Random 4.887 ns 0.0573 ns 0.0536 ns 4.871 ns

总结

  1. 不同算法在数据集大小不同和关键字符串位置不同的情况下,表现都很稳定。
  2. 默认的 IndexOf 最好使用 StringComparison.Ordinal ,比默认的 StringComparison.CurrentCulture 快两个数量级,平均大约是 20 倍的差距。
  3. 算法效率由快到慢排序为 KMPIndexOf SpanIndexOf IndexOfOrdinal SpanIndexOfOrdinal BoyerMooreIndexOf IndexOf,效率比率大约为:
KMPIndexOf SpanIndexOf IndexOfOrdinal SpanIndexOfOrdinal BoyerMooreIndexOf IndexOf
1 2 2.5 3 35 200

PS:以上结果仅为本人测试所得,供本人日后编程参考,不排除有代码 BUG 的可能,欢迎斧正。
